Lifting columns TL18

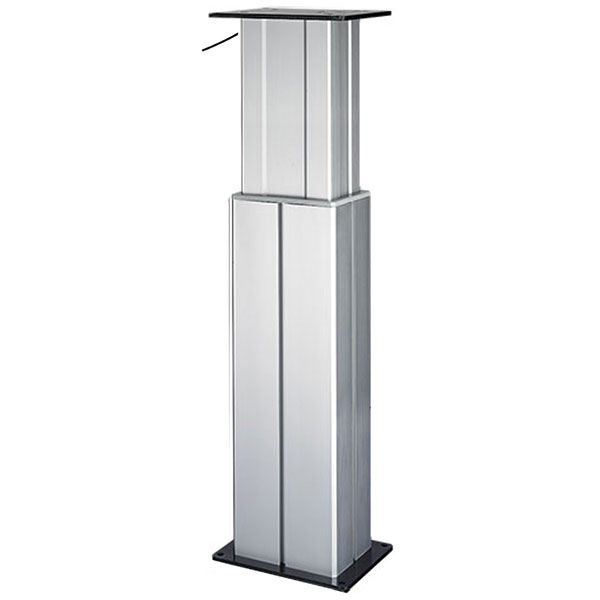

TL18 lifting column with lifting height 500 mm, this version is 1-single column with outer profile down.



The TL18 is a heavy-duty, electrically driven lifting column in extruded aluminum for use in workshops and industry. You choose whether you want the outer profile up or down.



Each column is supplied with a recessed floor and top plate (257 x 195 x 8 mm) for safe and stable operation and has a working height of 670 – 1170 mm (without table top).



Lifting speed is 22 mm/sec without load and electronic control box is included, regardless of model. Select the desired control unit, hand or foot control.



The pillars are certified according to standards IEC60601-1, ES60601-1, IEC60601-1-2, UL73 & EMC.

Visa mer produktinformation
  • Favorites Favorites Art.no 42-480-0001
  • Max load/column N 2000
  • Height range, excl. disc 670-1170 mm
  • Lifting speed mm/sec 22
  • Max dynamic bending moment Nm 250
  • Max static bending moment Nm 500
  • Standards IEC60601-1, ES60601-1, IEC60601-1-2, UL73 & EMC
